產品展示

高品質探針  先進材料結構  精益鍍層處理  優質組裝工藝

當前位置：首頁>首頁>產品展示>測試探針
儒眾產品分類
    • P040-0240-X1XX Specification

    全國熱線
    0512-6607 4325

    在線咨詢

    分享到：

    分享到微信：

    ×
    產品詳情 / Product Details

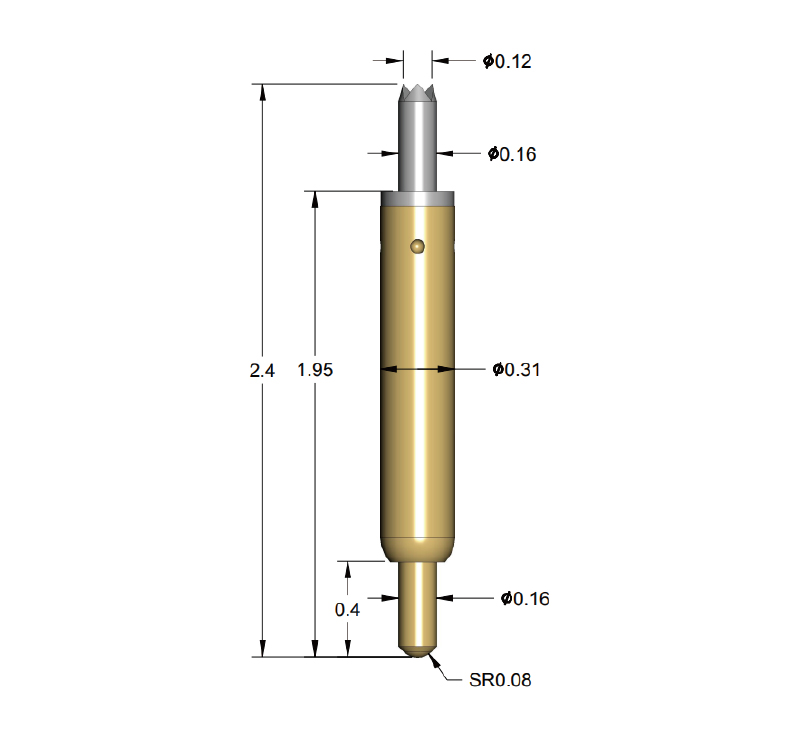

    Mechanical:
    · Pitch (Minimum):
    · Recommended travel:
    · Operating temperature:
    		0.40mm
    0.30mm
    -55°C to 120°C
    Electrical:
    · Typical Resistance (Avg):
    · Current carrying capability:
    · Bandwidth @-1dB IL (GSG):
    · Loop inductance:
    · Capacitance:    		<60 mΩ
    2.0 A
    >25 GHz
    0.29nH
    0.23 pF
    Material:
    · Bottom plunger:
    · Barrel:
    · Spring:    		BeCu, Gold plated
    Phosphorous bronze, Gold plated
    Music wire, Gold plated


    X1XX

    Mechanical

    Material

    Application

    Working Force

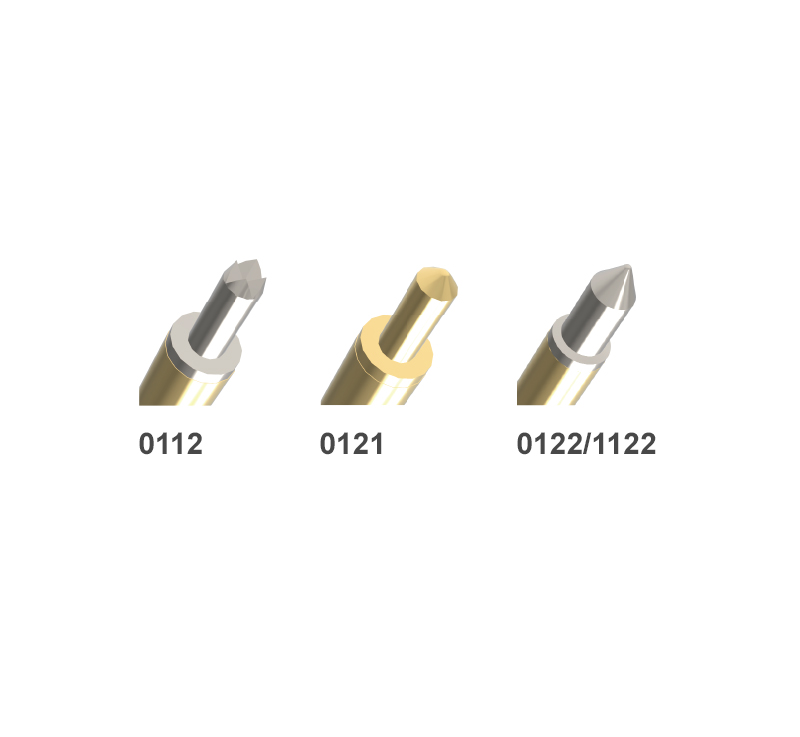

    Tip (Top/Bottom plunger)

    Top plunger

    0112

    BGA/QFN

    30.0g

    4-pts Crown/ Radius

    Pd Alloy

    0121

    LGA/QFN

    27.0g

    Radius / Radius

    BeCu, Gold plated

    0122

    LGA/QFN

    27.0g

    Radius / Radius

    Pd Alloy

    1122

    LGA/QFN

    20.0g

    Radius / Radius

    Pd Alloy
